Create Live Search Results (Search as You Type) in Drupal

Posted on October 22, 2015 - 7 Minute Read

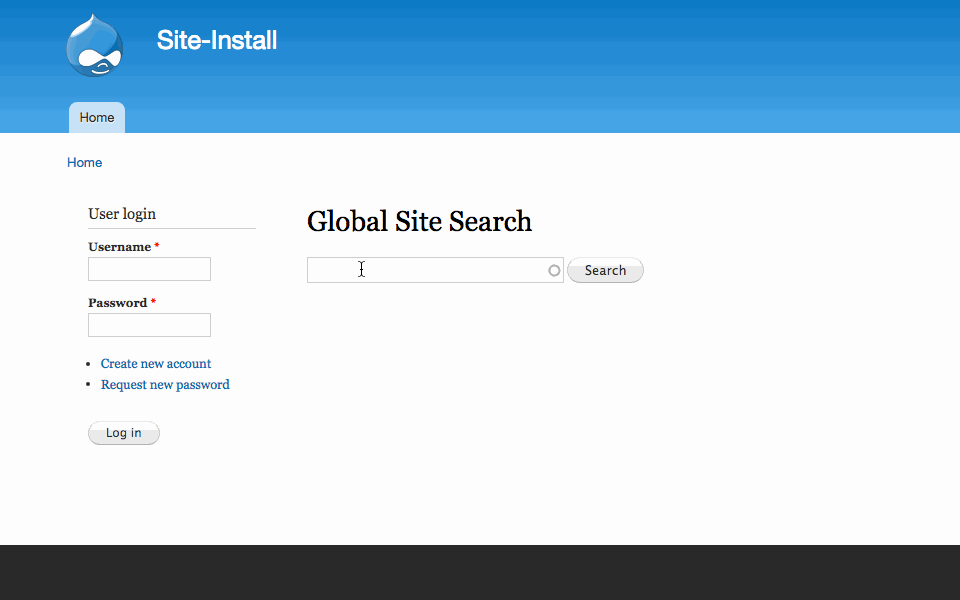

By default, Drupal offers the ability to search the site with its core Search module. However, this module can be limiting. In this tutorial we are going to configure live results. Below is the final result. When a user begins to type, live results will appear that are linked to a node.

Enable the Modules

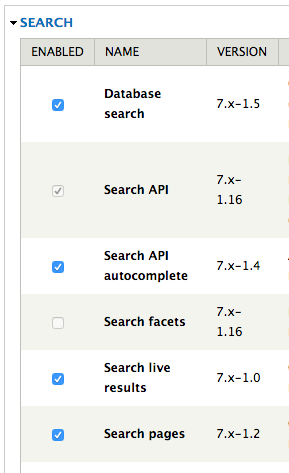

  1. Navigate to the modules page and enable the following modules.

    • Database search
    • Search API
    • Search API autocomplete
    • Search live results
    • Search pages

Screen Shot 2015 10 22 at 5 39 25 AM

  1. Disable the core Search module

Screen Shot 2015 10 22 at 6 16 41 AM

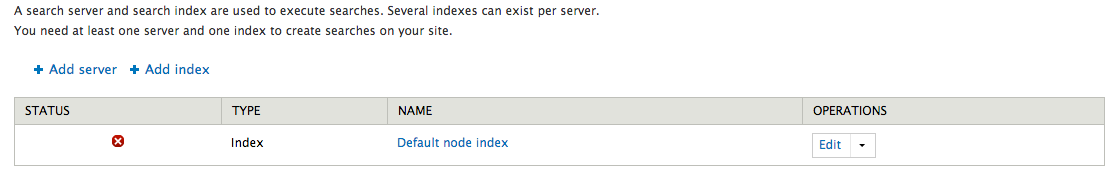

  1. Navigate to the Search API configuration page admin/config/search/search_api
  2. Click Add server, or go to admin/config/search/search_api/add_server

Screen Shot 2015 10 22 at 5 41 28 AM

  1. Give the server a name, and make sure to check Enabled

Screen Shot 2015 10 22 at 5 41 56 AM

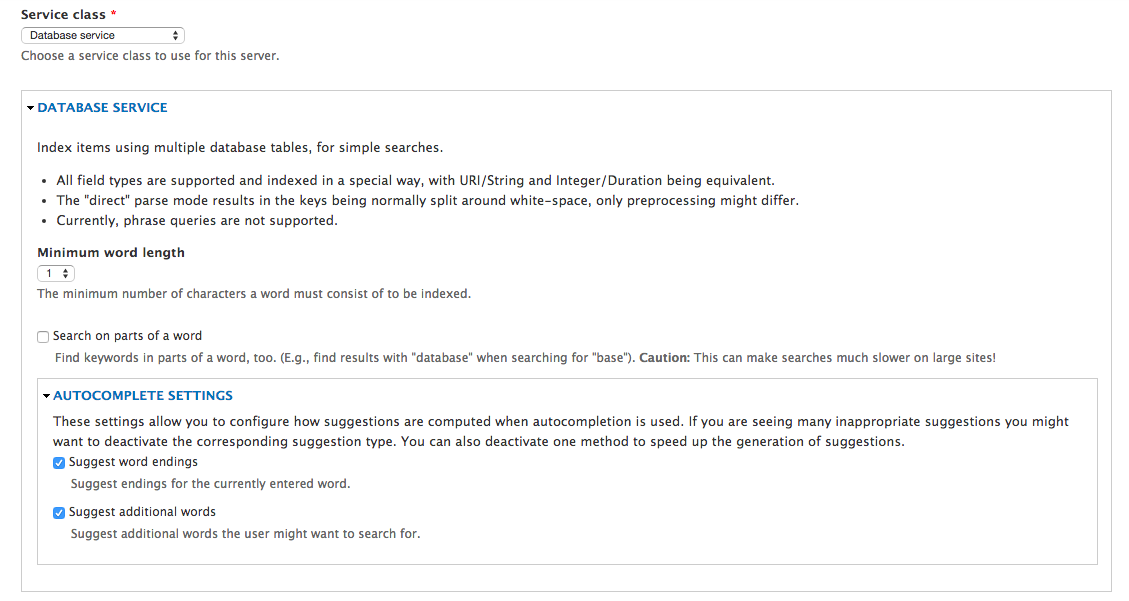

  1. Select Database service for the server class. The default settings can be used for everything else.

Screen Shot 2015 10 22 at 5 42 10 AM

  1. Edit the Default node index at admin/config/search/search_api/index/default_node_index/edit
  2. Under Server select the server you just created in step 2 and click save.

Screen Shot 2015 10 22 at 5 46 06 AM

  1. Navigate to admin/config/search/search_api/index/default_node_index and click enable in the status row.

Screen Shot 2015 10 22 at 5 47 51 AM

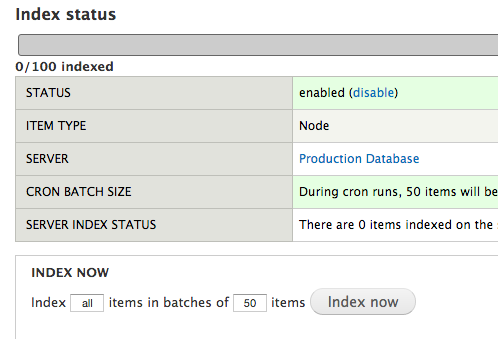

  1. Once enabled, click Index now to index all content on your site.

Screen Shot 2015 10 23 at 6 31 55 AM

  1. Under the Fields tab or admin/config/search/search_api/index/default_node_index/fields, select the fields and other data you wish your site to be able to search. In my case, I only have the default Basic Page and Article content types enabled on my site. Because of this, I made sure to have the tags field searchable, along with the summary of each content type which is stored in the body field.

Screen Shot 2015 10 22 at 5 50 25 AM

Screen Shot 2015 10 22 at 5 50 48 AM

Screen Shot 2015 10 23 at 6 27 13 AM

Add A Search Page​

  1. Navigate to the Search API Search Pages page at admin/config/search/search_api/page
  2. Click Add search page or go to admin/config/search/search_api/page/add

Screen Shot 2015 10 22 at 5 55 40 AM

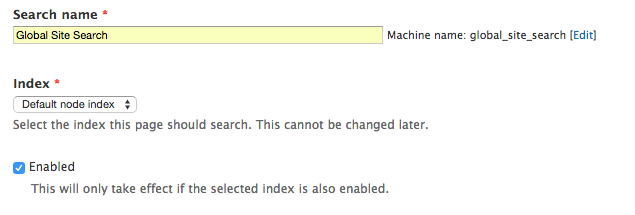

  1. Set the Index to the Default node index we enabled in the previous section

Screen Shot 2015 10 22 at 6 06 48 AM

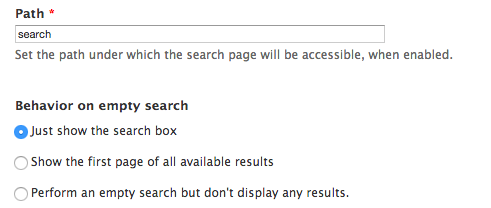

  1. Set the path for the search page. In my case I kept it simple and used search.

Screen Shot 2015 10 22 at 6 06 59 AM

Configure Live Search Settings

  1. Navigate back to the Default node index page at admin/config/search/search_api/index/default_node_index
  2. Click the Autocomplete tab at admin/config/search/search_api/index/default_node_index/autocomplete

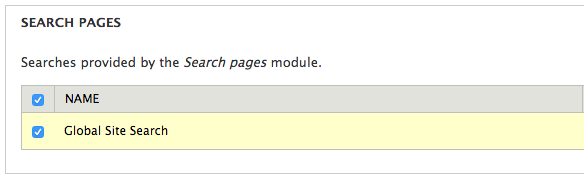

  3. Enable Global Site Search that we created in step 4 and click Save

Screen Shot 2015 10 22 at 6 11 42 AM

  1. Click the Live Results tab at admin/config/search/search_api/index/default_node_index/live-results
  2. Enable Global Site Search that we created in step 9 and click Save

Screen Shot 2015 10 22 at 6 11 42 AM

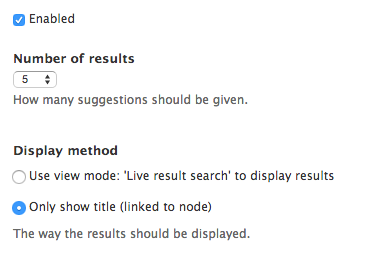

  1. (​Optional) Click edit to adjust how many live results will appear when running a search. You can also select Use view mode: 'Live result search' to display results. Instead of simply displaying the title of the node on the search box, this will display the content based on your configuration of the Live result search display format. For now, I'll just use Only show title (linked to node).

Screen Shot 2015 10 22 at 6 12 17 AM

Configure Search API Permissions

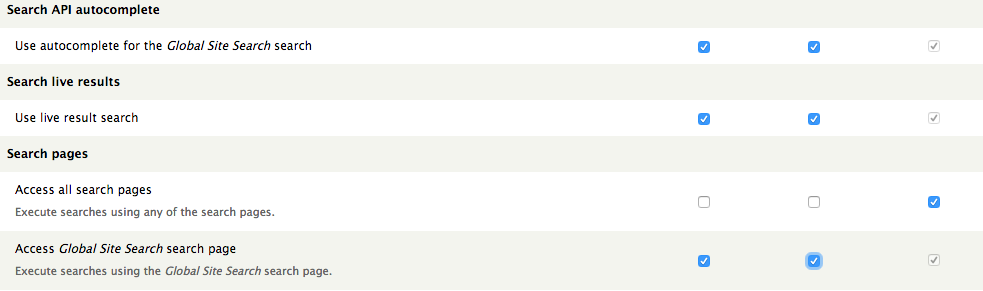

  1. Navigate to admin/people/permissions and grant the appropriate roles these permissions.
  2. Use autocomplete for the Global Site Search search
  3. Use live result search
  4. Access Global Site Search search page

Screen Shot 2015 10 22 at 6 17 48 AM

Enable the Search Block

Users can now search the site at /search, but let's make it even easier for them by adding a search block to the header.

  1. Navigate to the blocks page at admin/structure/block
  2. A search block with the name we used in step 3 of Add A Search Page​ will be available.
  3. Add this block to the header, or any other region

Screen Shot 2015 10 23 at 6 43 24 AM

The above steps allow users to search as they type by displaying node titles. However, we can also display node content while users search too. This is perfect for e-commerce sites, but can be used almost anywhere. Below is the effect we are after. Note that you will need to use custom CSS to style this.

Screen Shot 2015 10 25 at 8 34 25 AM

  1. Navigate to the Manage display tab for any content type being indexed. Then, go to the Live results search display. For an Article, that would be admin/structure/types/manage/article/display/live_results_search.
  2. Configure the fields you wish to display and save.
  3. Navigate to the Live Results Tab for the Default node index we configured earlier, or go to admin/config/search/search_api/index/default_node_index/live-results
  4. Click edit next to Global Site Search
  5. Under Display Method enable Use view mode: 'Live result search' to display results and save.
  6. You will need to style these search results using CSS. Each theme is different, so I will leave this step out. You could also use Panelizer to help with this.
